Gas Preheater

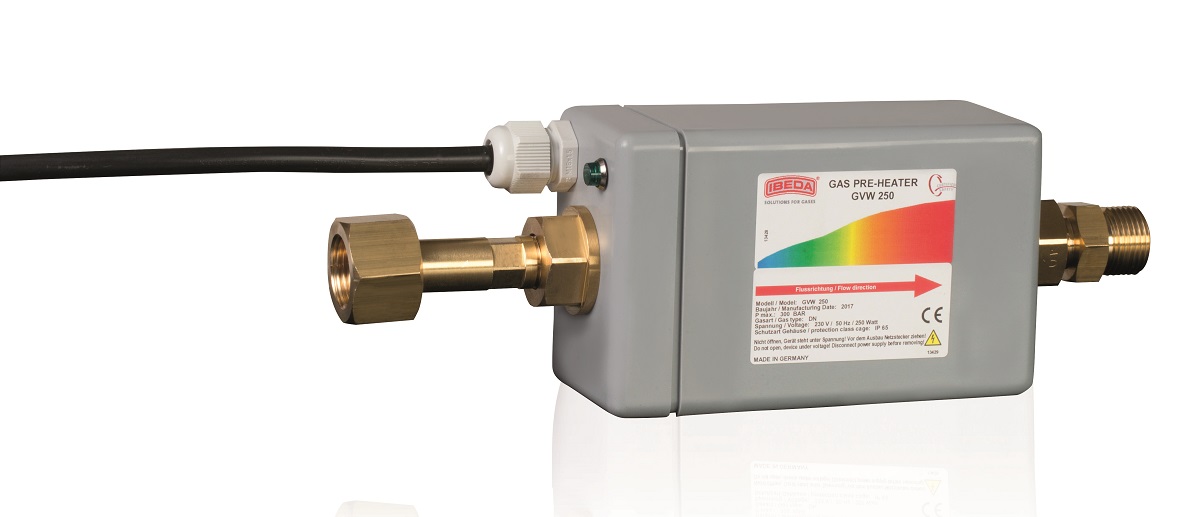

The GVW 250 gas preheater is designed for use with gas cylinders and cylinder bundles.
The use of a gas preheater effectively prevents reductions in flow rate and possible interruptions to the production process.
The GVW 250 provides efficient heating of highly compressed inert and non-corrosive gases. By heating the gas before expansion, it helps prevent icing of downstream equipment, regulators and connections. Reliable continuous operation is ensured through a dual temperature control system that protects against overheating.
The gas preheater is particularly suitable for applications involving argon, carbon dioxide (CO₂), nitrous oxide, oxygen and nitrogen, where icing may occur due to expansion cooling in cylinders or gas distribution systems.
Supplied with:
- 2 m power cable with 230 V connection
- Connections for various gas types
- Green LED indicator for “Heating ON”
Maintenance
Periodic visual inspection should be carried out to check for external damage or contamination. Repairs and maintenance shall be performed by the manufacturer.
Item number: 37072600
-
Specifications
Gas O2, AR, HE, NE, N2, CO2 Inlet Pressure 200 Bar Inlet Connection W24.32 X 1/14" Outlet Connection W24,32 X 1/14" M Capacity 30Nm 3/H Voltage 230 Volt -
Appendices
Follow the link below to view attachments for this product.
-
Spare parts
Spare parts will be available soon.
