D75 Ergo

The D75 Ergo operates according to the injector principle, where oxygen draws in the fuel gas (acetylene) into the torch.
This makes it very easy to adjust the gas mixture ratio.
The main component of the D75 is the handle. The D75 Ergo combines ergonomic design with excellent grip and precise control for the welder.

Additional components include attachments for cutting, welding, brazing and heating.
All components are interchangeable with equivalent torch systems available on the market.

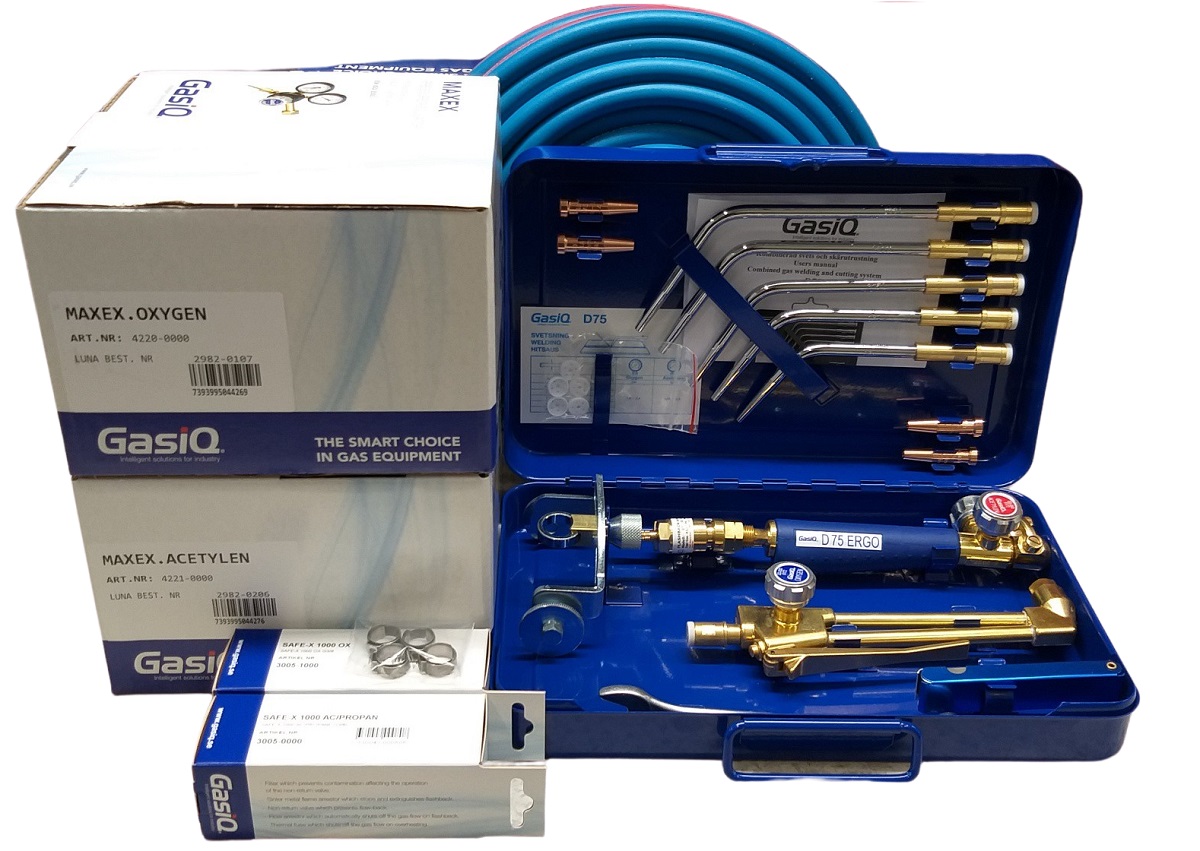

Contents:

33080000 – Handle D75 Ergo with quick coupling
33620100 – Cutting attachment with lever valve, 90°
33160000 – Welding attachment 80 l/h
33160100 – Welding attachment 160 l/h
33160200 – Welding attachment 315 l/h
33160300 – Welding attachment 500 l/h
33160400 – Welding attachment 800 l/h
33830100 – Needle flame nozzle 1–3 mm
33830200 – Needle flame nozzle 3–8 mm
33830300 – Needle flame nozzle 8–20 mm
33830400 – Needle flame nozzle 20–50 mm
35220000 – Cutting support, 2-wheel
30090100 – Flashback arrestor, OX 1/4″ × 6.3 mm
30090200 – Flashback arrestor, AC 1/4″ LH × 6.3 mm
36180000 – Open-end wrench, 15 mm
36190000 – Data chart D75
42200000 – Maxex, OX
42210000 – Maxex, AC
30051000 – Safe-X 1000 OX
30050000 – Safe-X 1000 AC / Propane
56240300 – Twin hose 6.3 mm, 10 m, OX/AC
